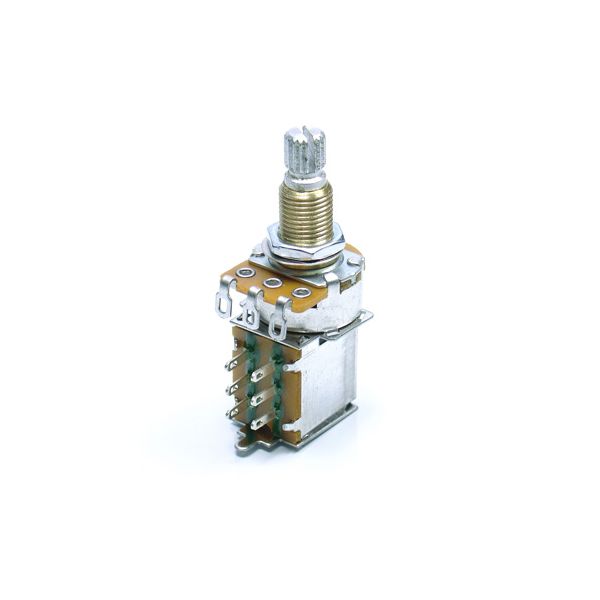

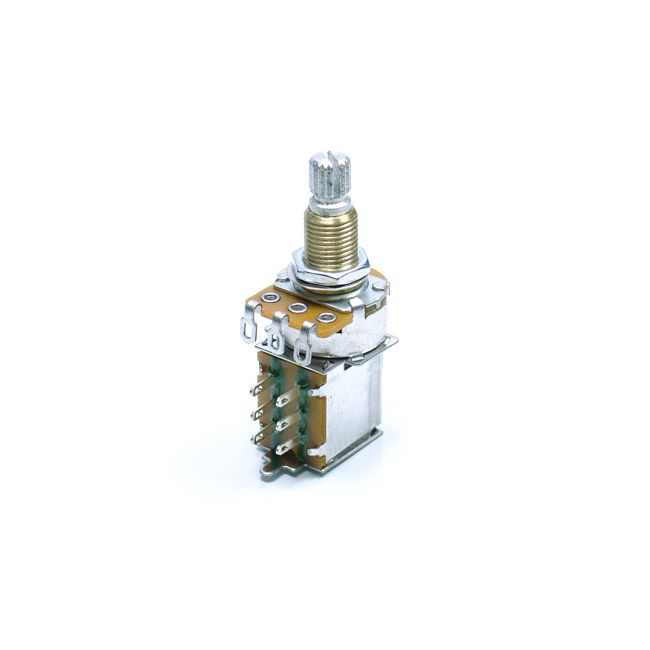

Alpha 500k Metric Thread Linear Taper 'Push Pull' Pot. Used to control pickup phasing series/parallel switching coil-taps and more.
- Metric thread: M8 x .75
- 7.8mm diameter brass threaded collar (import size, smaller than USA spec versions).
- 18 spline aluminium split shaft (coarse).
- Includes 1 x nut, 1 x dress washer.
Dimensions:
- 46mm overall length.
- 23mm width.
- The brass threaded collar is 9.5mm long.
- Total length of the shaft to the top of the spline is 18mm.
- Split shaft diameter : 6mm.
| Brand | Realtone |
|---|
