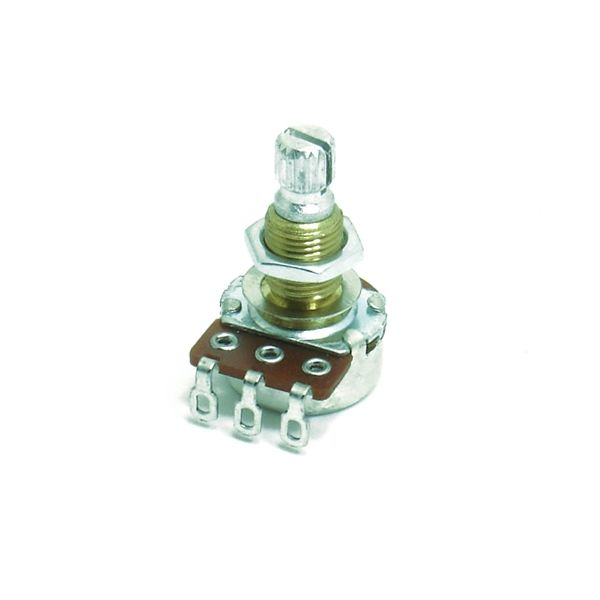

Alpha 500k Metric Thread Linear Taper 'Mini' Pot.
- Metric thread: M8 x .75
- 7.8mm diameter brass threaded collar (import size, smaller than USA spec versions).
- 18 spline aluminium split shaft (coarse).
- Includes 1 x nut, 1 x dress washer.
Dimensions:
- The brass threaded collar is 9.5mm long.
- Total length of the shaft to the top of the spline is 18mm.
- Split shaft diameter : 6mm.
- Pot casing diameter : 16mm.
Which pot value should you choose?
500K pots are standard controls for humbuckers, and 250Ks are usually used for single-coil pickups. A 250K gives a slightly warmer tone than a 500K, and bleeds off some of the high frequencies to ground.
| Brand | Realtone |
|---|
