EP-5485-000

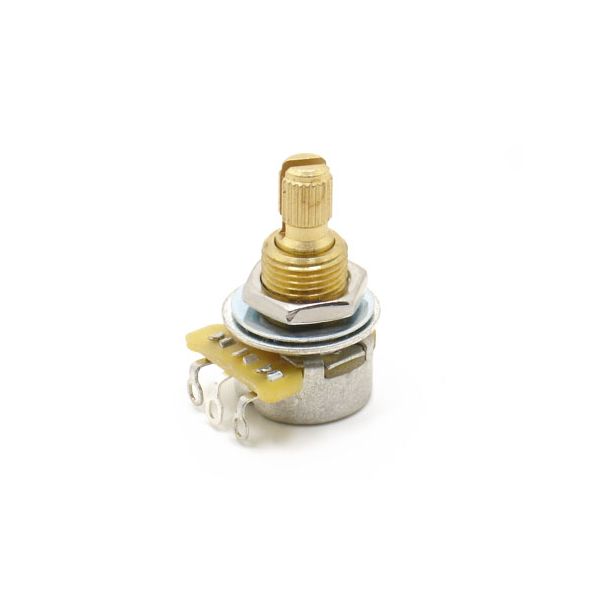

250k CTS Audio Taper Mini Pot

250k CTS Audio Taper Mini Pot

NZ$14.00
World Famous CTS Pots. Best Quality Pot Available!.
Availability: In stock
SKU
APEP5485-000
250K Mini Audio Taper, Split Shaft With Nut, Lock & Dress Washer. US thread and 24 spline.

Dimensions - The threaded portion on the shaft is 9.5mm long. Diameter of the threaded portion of the shaft is 10mm. Diameter of the Split Shaft / Spline is 6mm. Total length of the shaft to the top of the spline is 18mm.

Audio Taper Pots are generally used in both Volume and Tone Positions.
Rule of thumb - 250K pots are generally used with single-coil pickups. 500k pots are generally used with humbuckers.
More Information
Brand CTS Pots
